Primary gases: Nitrogen EP and Oxygen EP
Available with following max flows: 30 – 60 – 120 – 200 – 500 Sm3/h
Local and remote monitoring for measurements, alarms, status and timer
Wide touchscreen VGA display LED backlighted
Yellow and red alarm lights for Emergency and Operative alarm status
Acoustic alarm signal
Alarm recovery time adjustable from 1 to 15 minutes
Programming by pushbuttons on touch screen display panel
Visual indication of communication in progress and fault conditions
Automatic sensors calibration
Remote programming parameters through CrioSystemSupervisor telemetry platform (MOD-COM modem required)
Scheduled maintenance expiration warning
System restart by remote
Self-checking system for automatic controls
Auxiliary output switches for external cumulative alarm indicator or hooter
USB connector to download events log file
Proprietary network protocol CRIONet
Visual and acoustic indication alarm in accordance with European standard ISO EN 7396-1 and EN 60601-1-8

REGISTER

Power supply
100-240 Vac 50/60Hz, Pmax 60VA, fuse 0.5A

Flow range
30 Smc/h, 60 Smc/h, 120 Smc/h, 200 Smc/h, 500 Smc/h

Visual indications
Backlit display VGA, Shutoff: 18x8 mm, red light indicator Alarm: 18x8 mm, yellow light indicator Fail: Ø 5 mm, red LED light Com: Ø 5 mm, green LED light

Alarm sound
Magnetic speaker, volume adjust up to 95dB @ 1 m (EN 60601-1-8

Automatic controls
O2 analysis @ mixer and buffer tank outlet, input and output pressure, flow production, valves anomalies, wrong analysis

Input pressure range O2 and N2
12÷15 bar rel. – maximum pressure burst 40 bar rel. / minimum temperature inlet -20 °C

Delivery pressure range
5÷9 bar rel. (Pout)

Combined error
<±1% O2 full range (25%)

Long term drift
<±0.2% O2 on 5 years

O2 analysers warm-up
5 minutes

Minimum pressure drop input-output
2,5 bar

Auxiliary output switch
Vmax=250 Vdc/Vac, Imax=100 mA, N.C. or N.O. operations

Housing (without buffer tank)
Metal cabinet RACK 19”, dim. 600x1.950x600 mm, IP55 (MIXTEL 60,120, 200, 500) Metal cabinet RACK 19”, dim. 600x1.200x600 mm, IP55 (MIXTEL 30)

Local network interface
Proprietary protocol CRIONet on insulated bidirectional RS485

Weight
e-MIXTEL 30 150 Kg, e-MIXTEL 60-120-200 Rack 200 Kg – Buffer Tank 500 l 200 Kg e-MIXTEL 500 Rack 300 Kg – Buffer Tank 5.000 l 570 Kg

Operating Temperature
0÷45 °C

Reference standards and directives
Directive 93/42/EEC as medical device II B class, PED 2014/68/EU as under device group I Category 4, 2014/30/EU EMC, 2014/35/EU, RoHS 2011/65/EU

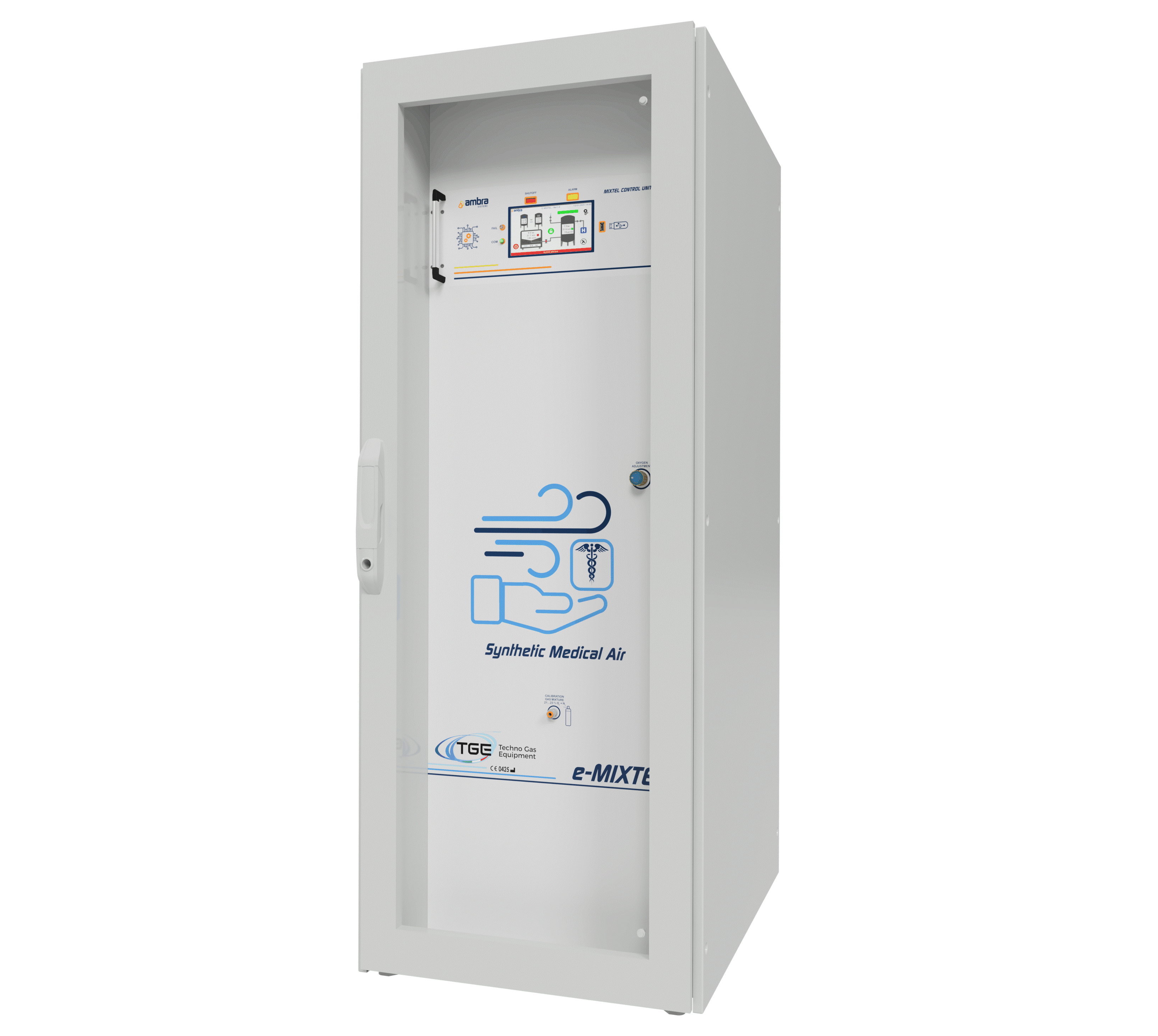

Synthetic Medical Air Production system for Hospital applications

CE 0425
Compliant with 93/42/EEC
Medical Devices Directive - Class IIb
