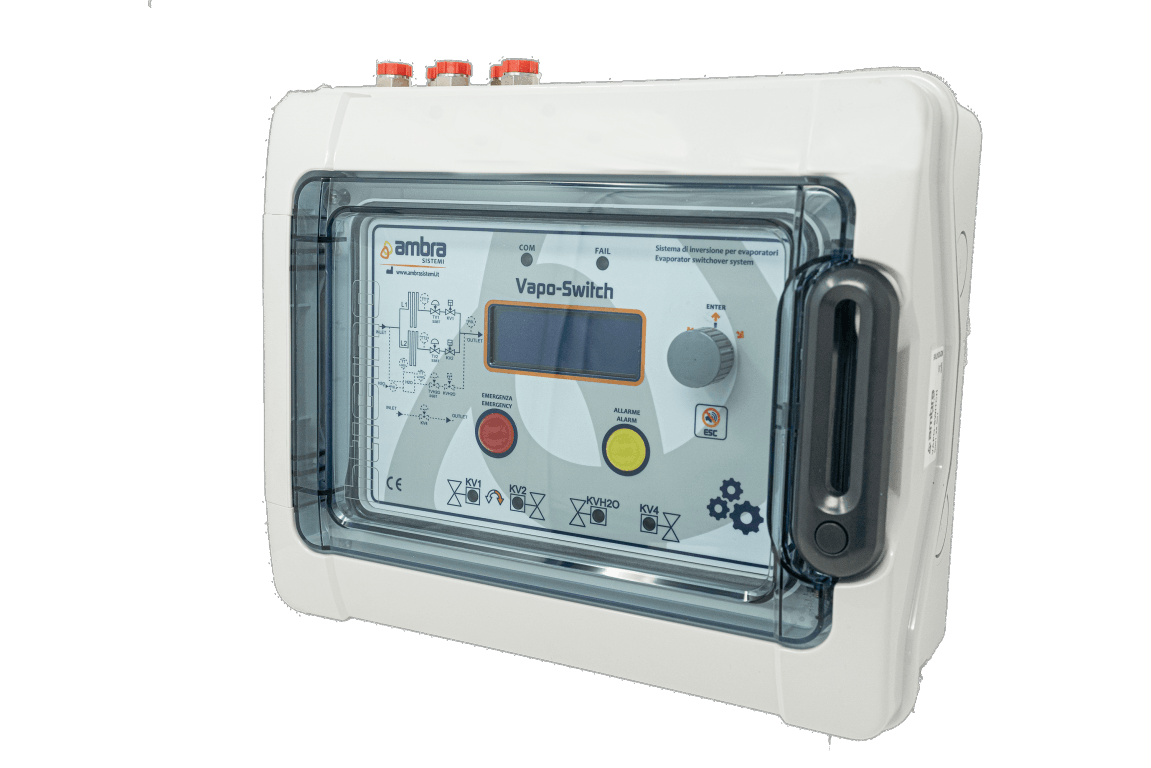

VAPO-SWITCH



Features



Monitoring and control unit of vaporizers for cryogenic gases

  • Switch over functions based on regular intervals of time, anticipated in case of malfunction or low temperature alarms referred to two preconfigured plants settings:
    • Plant 1: Two Ambient Vaporizers
    • Plant 2: H2O vaporizer + two backup Ambient Vaporizers
  • Local and remote monitoring for line temperatures, output pressure, valves status and alarms with associated ID
  • Wide display of 4 lines x 20 characters with LED backlight
  • Yellow and red alarm lights for High and Low priority alarm status
  • Acoustic alarm signal with acknowledge pushbutton (Alarm ACK)
  • Alarm recovery time adjustable from 1 to 99 minutes
  • Programming by encoder on the front panel
  • Visual indication of valves status on front panel
  • Auxiliary output switches for external cumulative alarm indicator or hooters
  • 4 integrated pilot solenoid valves
  • System restart by pushbutton on front panel
  • Proprietary network protocol CRIONet
  • Remote monitoring through CrioSystemSupervisor platform (MOD-COM modem required)

Technical Specs

REGISTER

Register to view technical data and to download data sheets.



Power supply
2110-230 Vac 50/60 Hz., P max. 25 VA, fuse 0.5 A
Visual indication
Display 4 lines x 20 characters, backlight
Low priority alarm: Ø 20 mm, yellow
High priority alarm: Ø 20 mm, high efficiency, red
Fail: Ø 5 mm, red
Communication: Ø 5 mm, yellow
Alarm sound
Magnetic speaker, volume adjust up to 95dB @ 1 m
Inputs
4 analog inputs 4-20 mA:
-Compatibility: two / three wire 4-20 mA transmitters
-Maximum voltage (open circuit): 24 Vdc
-Minimum voltage 16 Vdc @ I = 20 mA:
-Short circuit current: 25 mA
-Resolution: 10 bit

10 digital inputs:
-Compatibility: switch sensors
-Maximum voltage: 15 Vdc
-Maximum current: 15 mA


Auxiliary output switches
2 contacts Vmax= 250 Vdc/Vac, Imax= 100 mA, N.C. or N.O. operations
Pneumatic inputs/outputs
Max. input pressure 8bar, connections ¼”G
Housing

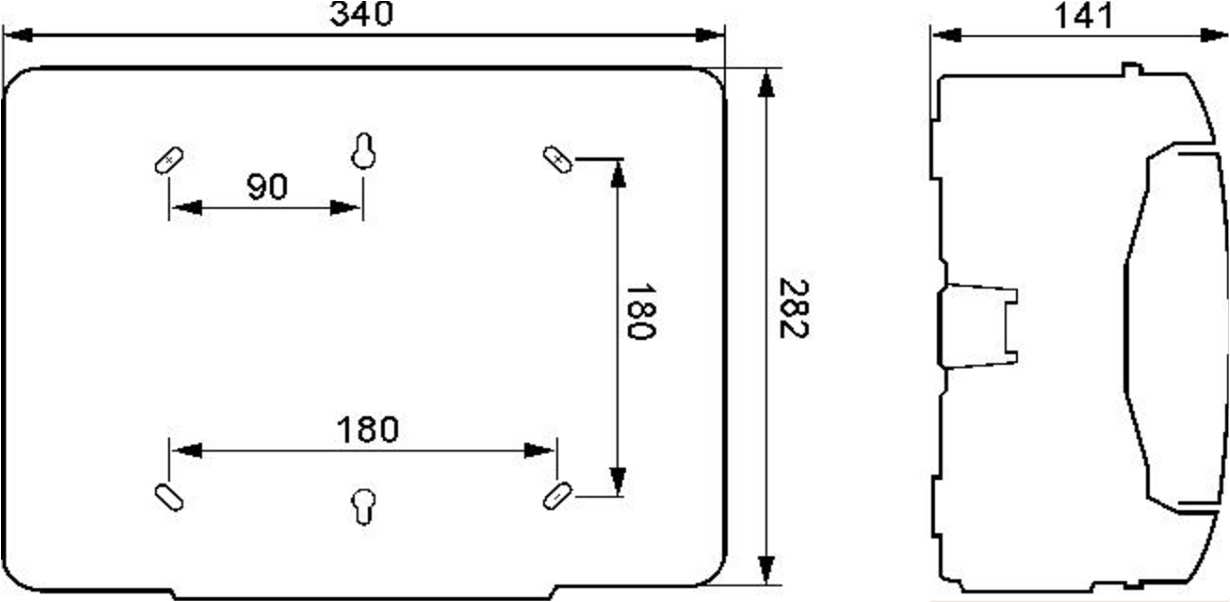

ABS white for wall mounting, dim. 340x282x141 mm, waterproof degree IP56
Local network interface
Proprietary protocol CRIONet on insulated bidirectional RS485
Weight
5 kg
Operating Temperature
0…65°C
Reference standards and directives
2014/30/EU EMC, 2014/35/EU LVD, RoHs 2011/65/UE




Typical Applications

Logic control and local/remote monitoring unit
for vaporizers connected to cryogenic tanks


TECHNICAL FEATURES

Power supply 24VccCRIONet 485 interfaceCE certification
