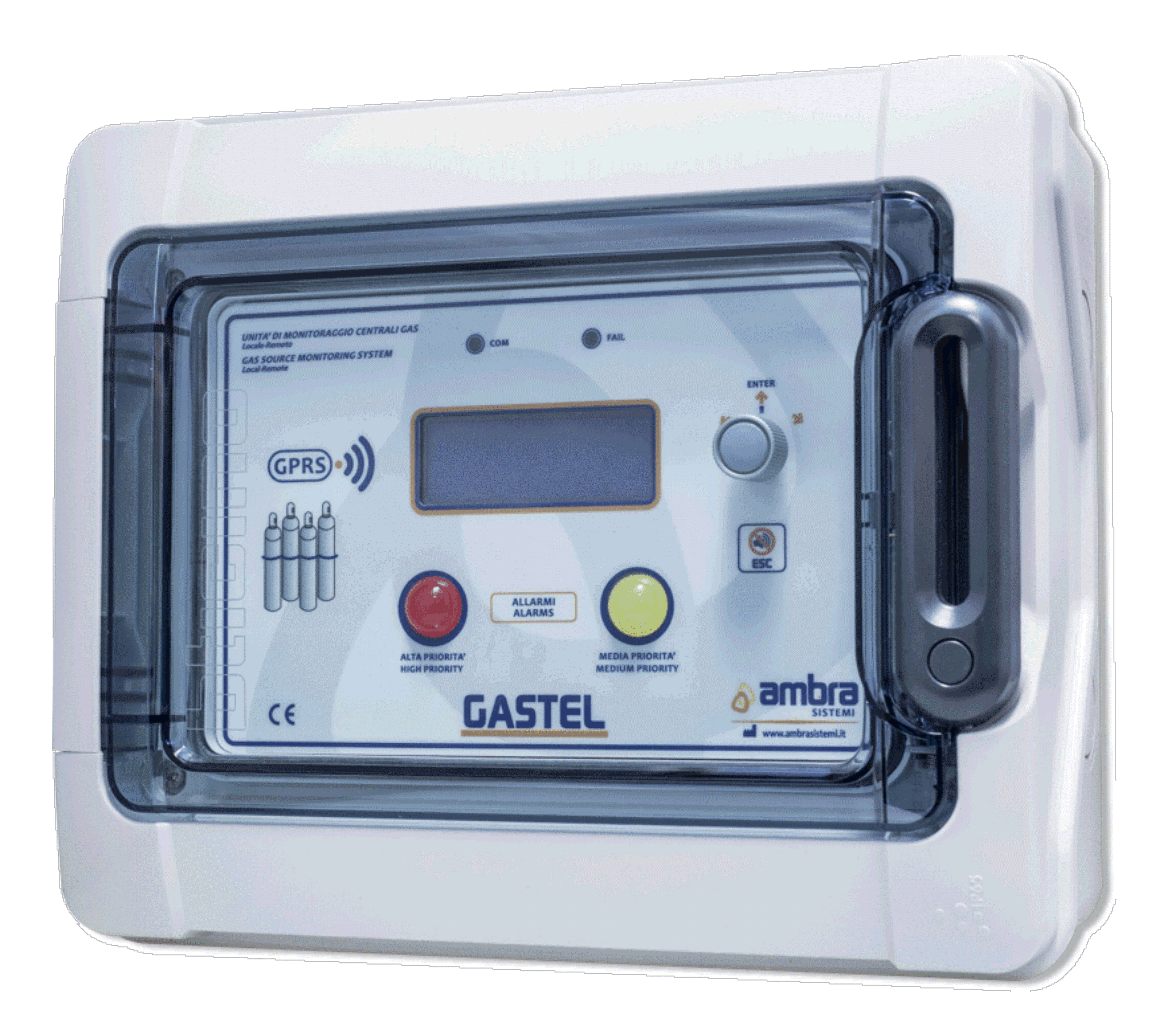

Local and remote monitoring for industrial compressed gases

Local and remote monitoring for measures and alarms with associated ID
Wide display of 4 lines x 20 characters with led backlight
Yellow and red alarm light for medium and high priority alarm conditions
Alarm acoustic signal with acknowledge pushbutton (Alarm ACK)
Alarm recovery time programmable by the user
Programming by encoder on the front panel
Fast monitoring of all measurements by pushbutton on front panel
Visual indication of communication in progress and fault conditions
Two auxiliary output switches for remote emergency and alarm signalling
Remote data transmission about alarms and measurements by integrated GPRS modem with interfacing to CrioSystemSupervisor platform

REGISTER

Power supply
230 Vac 50/60 Hz., P max. 5 VA, fuse 0.5 A

Visual indication
Display 4 lines x 20 characters, backlight Medium alarm: Ø 20 mm, yellow High alarm: Ø 20 mm, high efficiency, red Fail: Ø 5 mm, red Communication: Ø 5 mm, yellow

Alarm sound
Magnetic speaker, volume adjust up to 95dB @ 1 m

Inputs
8 analog inputs 4-20 mA: - Compatibility: 4-20 mA transmitters - Maximum voltage (open circuit): 24 Vdc - Minimum voltage @I = 20 mA: 16 Vdc - Short circuit current: 25 mA - Resolution: 10 bit

Auxiliary output switches
2 contacts Vmax = 250 Vdc/Vac, Imax = 1 mA, N.C. or N.O. operations

Housing
ABS white for wall mounting, dim. 340x282x141 mm, waterproof degree IP55

Communication card
Integrated modem 4G with GPRS data communication

Weight
4,1 kg

Operating Temperature
0…65 °C

Reference standards and directives
2014/35/UE LVD , 2014/30/UE EMC , 2014/53/UE RED, 2011/65/UE RoHS EN61000-6-1, EN61000-6-3

Local and remote monitoring system for
industrial compressed gases
