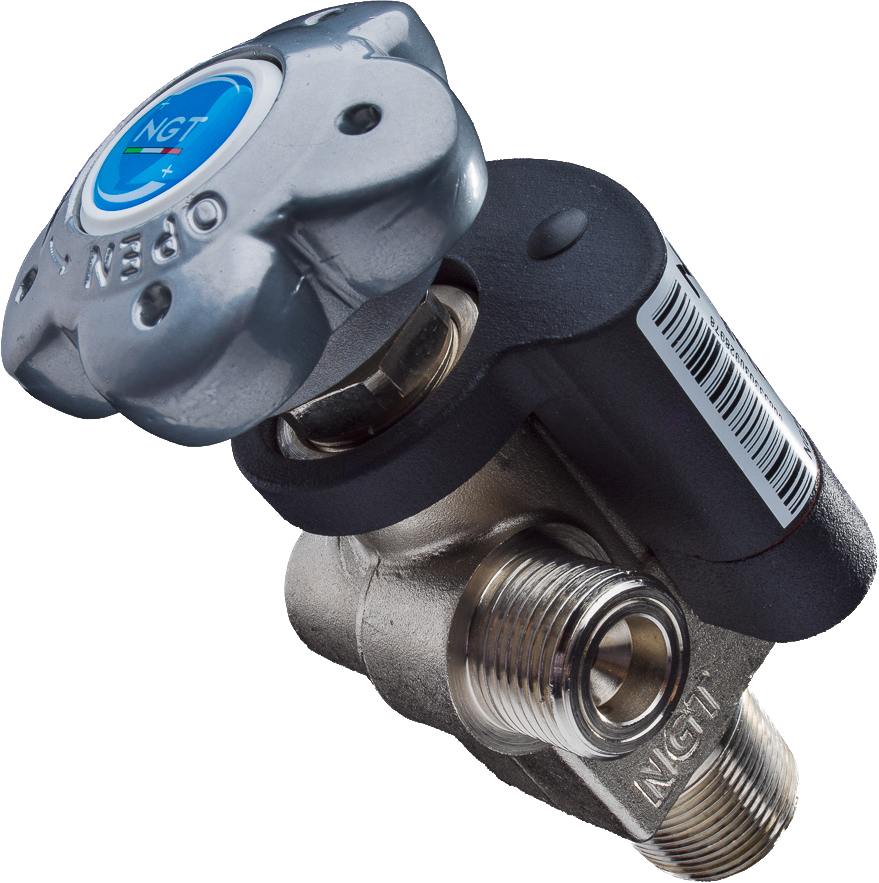

CylinderTEL (IoT)



CylinderTEL (IoT)

Features




Remote monitoring for compressed gas cylinders


  • Integrated pressure transducer
  • Integrated residual pressure valve
  • Compliant with any protection safety guards and caps
  • Integrated IoT terminal unit for remote telemetry
  • Data transmission technology: NB-IoT or SigFox
  • Remote programming by CrioSystemSupervisor platform
  • Low level alarm remote transmission and notification




Technical Specs

REGISTER

Register to view technical data and to download data sheets.



Gas Type
O2, Ar, N2, He, CO2, Air with threaded connection 25E (EN 629-1)
Upper limit working pressure
230 bar
Inline residual pressure
3 - 4 bar
Materials
Valve body: Brass CW617N EN12165 (finish: chrome plating)
Handwheel: Polished aluminum
Seat: PA Zytel 101F
O-ring: FKM
Electronic housing: Resin high performance IP66
Visual indications
none
Cylinder connections
E25E
Outlet connection
Dependent on specific media


Data transmission
NB-IoT / SigFox
Transmission frequency of updates
Programmable 1-24/day
Information sent to remote
Cylinder pressure, ambient temperature, battery status, NB-IoT/ SifFox signal strength, geolocation by LTE E-CELLID (NB-IoT)
Battery
LTC
Battery autonomy
10 years with daily transmission @ temperature +15/+40 °C
Operating Temperature
-15…50 °C
Reference standards and directives
G according T-PED, 2010/35/UE, 2008/68/EC (ADR/RID 2019), R&TTE 2014/53/EU, EMC
2014/30/EU, RoHS 2011/65/EU

360° View

360 Degree Drag


    Typical Applications

    Industrial valve for gas cylinders with Remote Monitoring


    TECHNICAL FEATURES

     CE certification

    Haven't found the right solution for your needs?

    Do you have any questions or do you need clarification? We are happy to answer your questions at any time.

    contact us

    Documents download

    Download PDF Data sheet
