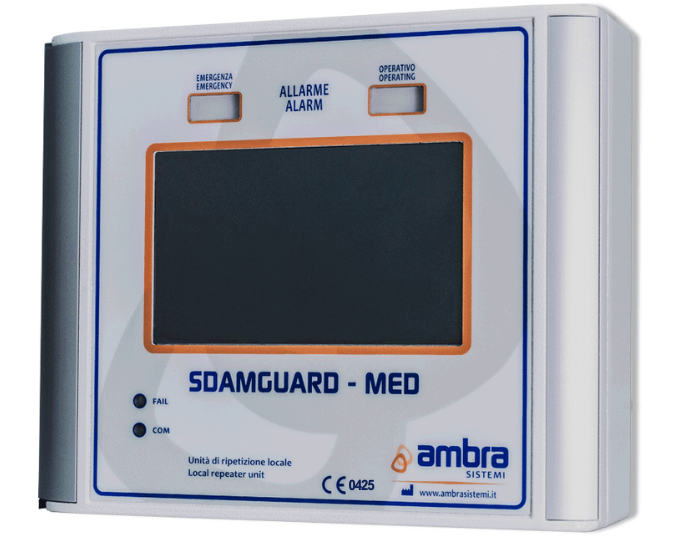

SDAMGUARD-MED



Features


Monitoring of medical gases supply system through local network constituted by SDAM-MED and SDAL-MED units

  • Central local unit for up to 253 SDAM-MED and/or SDAL-MED units on RS485 SDAMNet local network
  • Monitoring and alarm classification in accordance with operating parameters assigned to the corresponding SDAM-MED and/or SDAL-MED units
  • Origin of the information notified by the ID assigned to each SDAM-MED and/or SDAL-MED units
  • Wide display touch-screen VGA with led backlight
  • Yellow and red alarm lights for Emergency and Operative alarm status
  • Acoustic alarm signal with acknowledge pushbutton on display
  • Alarm recovery time adjustable from 1 to 15 minutes
  • Interactive programming by display
  • Automatic configuration by self-learning function
  • Visual indications for communication in progress and fault conditions
  • Auxiliary output switches for external cumulative alarm indicators or hooters
  • Proprietary network protocol SDAMNet Plus/ SDAMNet
  • Visual and acoustic indications about alarm status in accordance with European standard ISO 7396-1 and EN 60601-1-8




Technical Specs

REGISTER

Register to view technical data and to download data sheets.



Power supply
230 Vac 50/60 Hz., Pmax. 5 VA, fuse 0.5 A
Visual indications
Display: Graphic VGA 5” touch-screen, LED backlight
Operative alarm: 20x10 mm, yellow
Emergency alarm: 20x10 mm, high efficiency, red
Fail: Ø 5 mm, red
Communication: Ø 5 mm, yellow
Alarm sound
Magnetic speaker, volume adjust up to 95dB @ 1 m
Inputs
---

Auxiliary output switches
2 relay contacts, Vmax= 250 Vdc/Vac, Imax = 100 mA, N.C. or N.O. operations

Housing
White aluminium enclosure for wall mounting, dim. 200x170x(h)60 mm, waterproof degree IP56
Local network interface
Proprietary protocol SDAMNet Plus/ SDAMNet on insulated bidirectional RS485
Weight
1.6 kg
Operating temperature
0…65 °C
Reference standards and directives
93/42/EEC, 2014/30/EU EMC, 2014/35/EU, EN60601-1,
ISO 7396-1, EN 60601-1-8, EN61000-6-1, EN61000-6-3, RoHs 2011/65/UE


Typical Applications

Local repeater for networks constituted by
SDAM-MED and/or SDAL-MED

CE 0425
Compliant with 93/42/EEC
Medical Devices Directive - Class IIb
