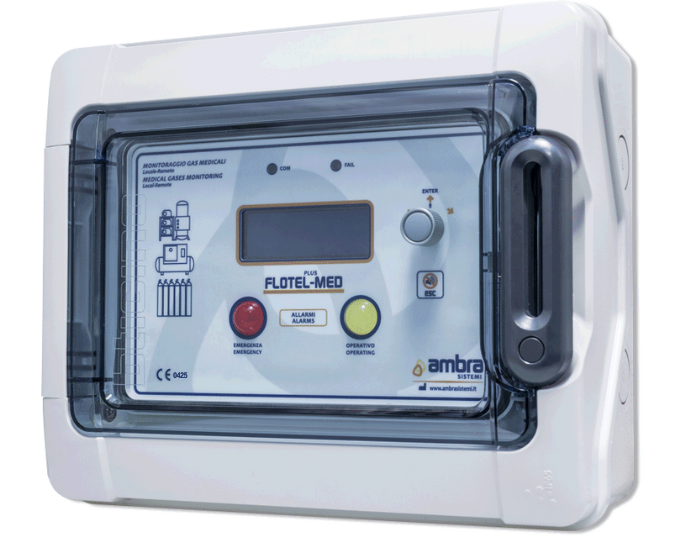

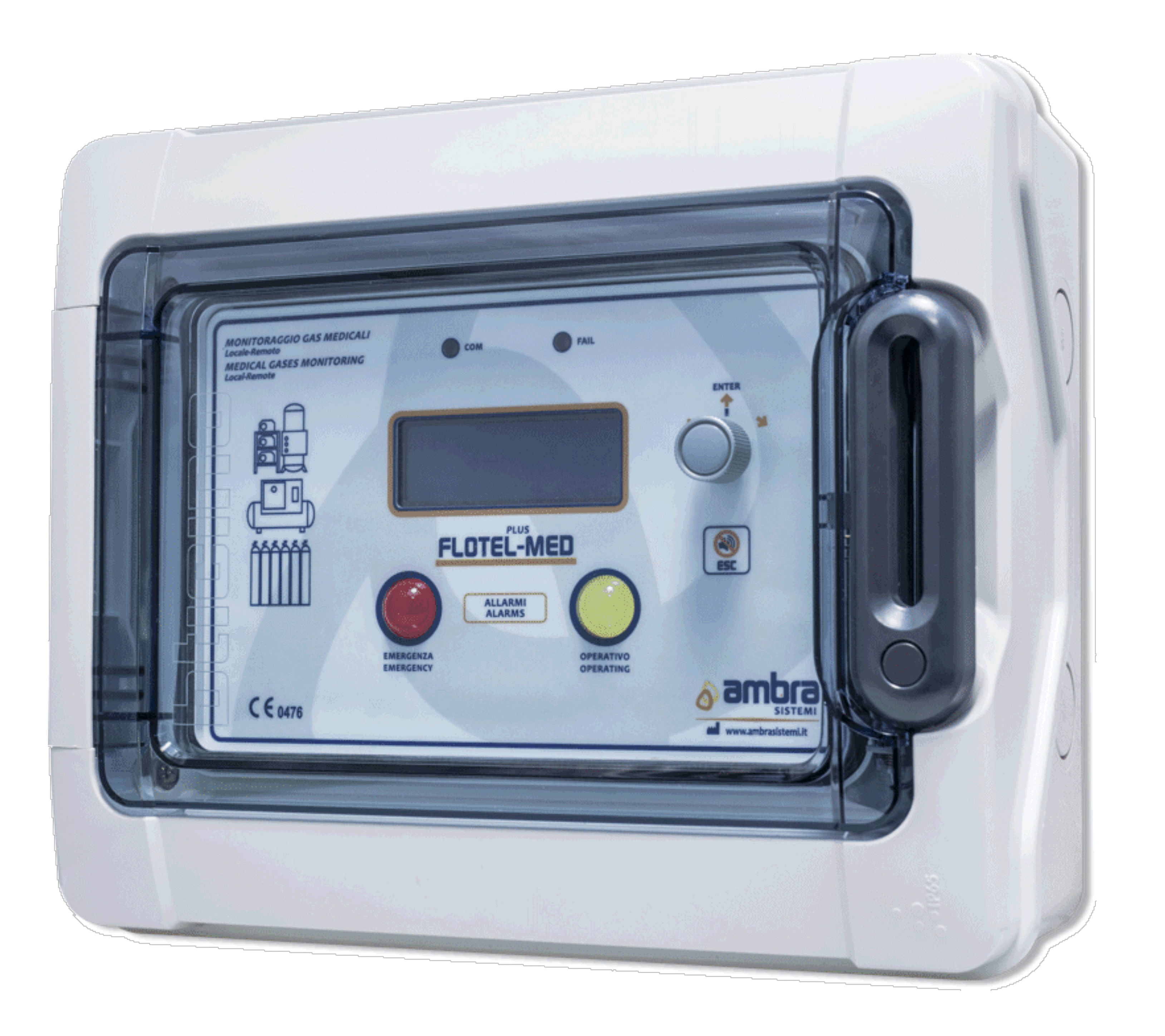

Local and remote monitoring system for compressed gases storages and compressor/vacuum systems

  • Local and remote monitoring for measures, status and alarms with associated ID
  • Wide display of 4 lines x 20 characters with LED backlight
  • Yellow and red alarm lights for Emergency and Operative alarm status
  • Acoustic alarm signal with acknowledge pushbutton (Alarm ACK)
  • Alarm recovery time adjustable from 1 to 15 minutes
  • Programming by encoder on the front panel
  • Visual indication of communication in progress and fault conditions
  • Auxiliary output switches for external cumulative alarm indicator or hooters
  • Proprietary network protocol CRIONet
  • Remote programming parameters through CrioSystemSupervisor platform (MOD-COM modem required)
  • Visual and acoustic indications about alarm status in accordance with European standard ISO 7396-1 and EN 60601-1-8

Technical Specs


Register to view technical data and to download data sheets.

Power supply
230 Vac 50/60 Hz., P max. 25 VA, fuse 0.5 A
Visual indication
Display 4 lines x 20 characters, backlight
Operative alarm: Ø 20 mm, yellow
Emergency alarm: Ø 20 mm, high efficiency, red
Fail: Ø 5 mm, red
Communication: Ø 5 mm, yellow
Alarm sound
Magnetic speaker, volume adjust up to 95dB @ 1 m
4 analog inputs 4-20 mA:
- Compatibility: 4-20 mA transmitters
- Maximum voltage (open circuit): 24 Vdc
- Minimum voltage @ I = 20 mA: 16 Vdc
- Short circuit current: 25 mA
- Resolution: 10 bit

10 digital inputs:
- Compatibility: switch sensors
- Maximum voltage: 15 Vdc
- Short circuit current: 15 mA

Auxiliary output switches
2 contacts Vmax= 250 Vdc/Vac, Imax= 100 mA, N.C. or N.O. operations

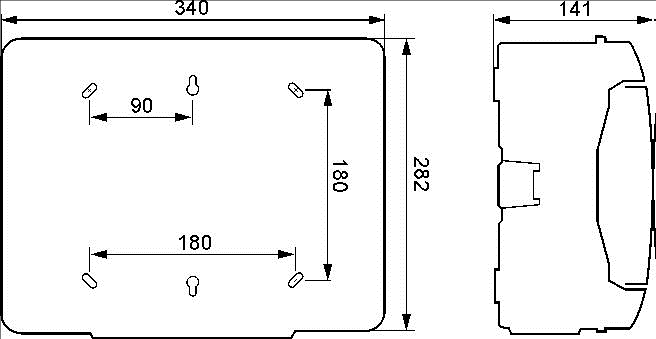

ABS white for wall mounting, dim. 340x282x141 mm, waterproof degree IP65
Local network interface
Proprietary protocol CRIONet on insulated bidirectional RS485
4.3 kg
Operating Temperature
Reference standards and directives
93/42/EEC, 2014/30/EU EMC, 2014/35/EU, EN60601-1,
ISO 7396-1, EN 60601-1-8, EN61000-6-1, EN61000-6-3, RoHs 2011/65/UE

Typical Applications

Local and remote monitoring system for
compressed gases storages and central vacuum station

CE 0425
Compliant with 93/42/EEC
Medical Devices Directive - Class IIb


CE certification
