Features

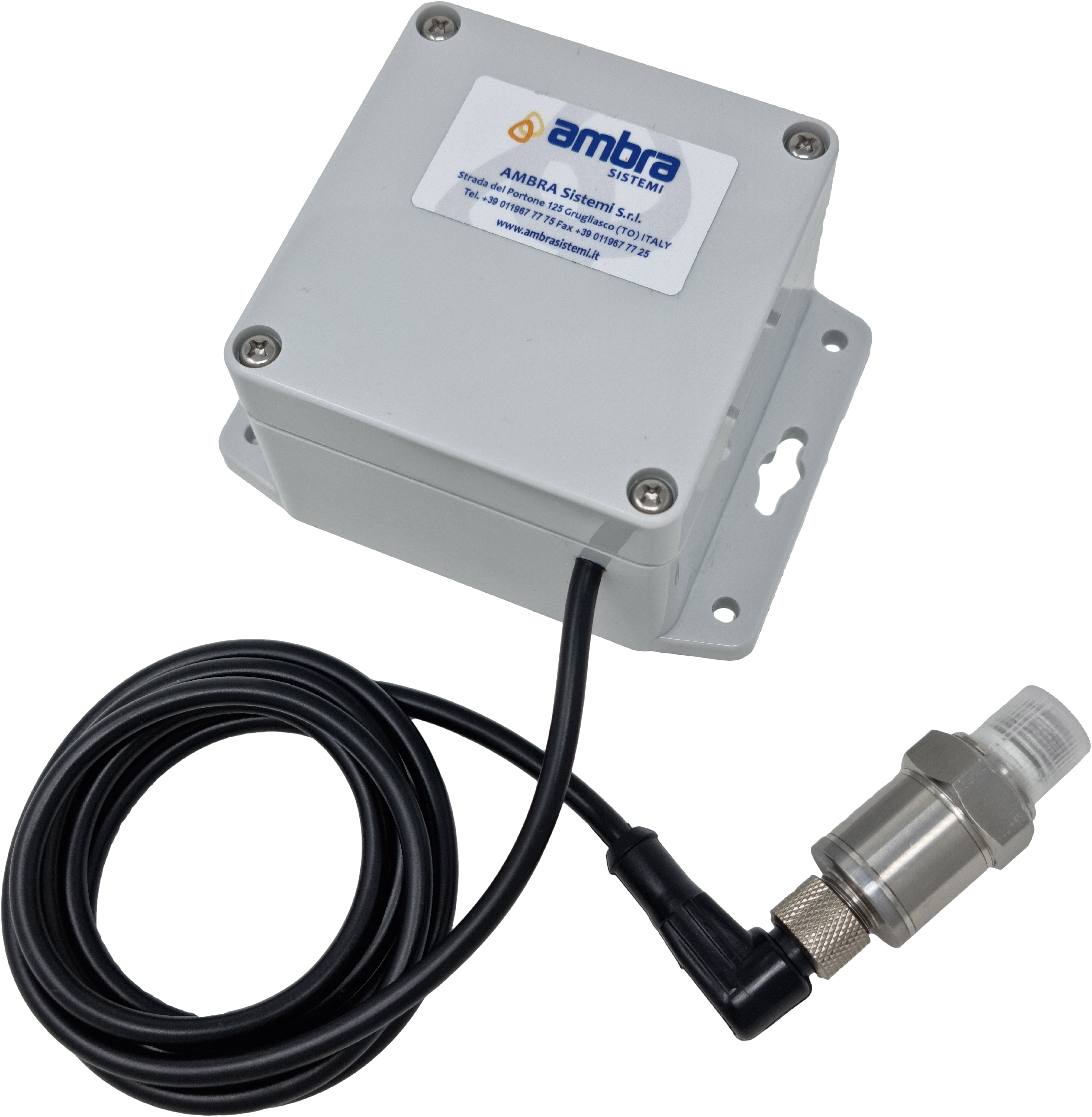

Telemetry system for gas cylinder bundles

Temperature monitoring
Pressure monitoring
Shock sensor (BundleTEL GPS only)
GPS geolocalization (BundleTEL GPS only)
Data transmission NB-IoT with high coverage and low power consumption
Long life battery for over 10 years with daily data transmission

Technical Specs

REGISTER

Register to view technical data and to download data sheets.

Power supply
4 battery packet Li-ion 3.6V, capacity 14.4Ah

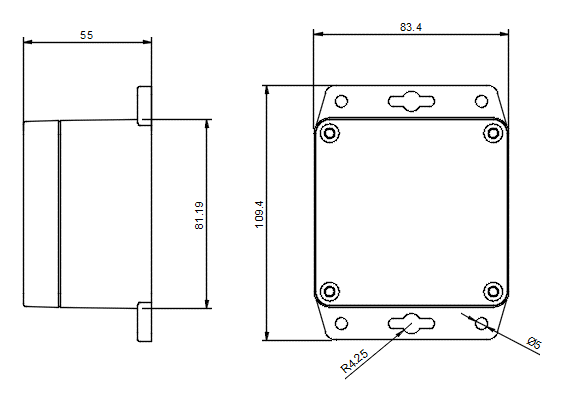

Weight and dimensions
Box 260 g 110 x 84 x 55 mm Cable and sensor 145 g length 50 cm

Materials
Box: Abs protection IP67 Sensor: Brass OT58, gasket Viton (FKM) or EPDM, IP67 Cable: double shielded insulation, A.F. CEI 20/22 III , CEI 36762 C-4

Process connection
M ¼ NPT – *possibility for other connections on request

Operating range
0 – 400 bar rel.

Burst range
600 bar rel.

Combined error
< ± 2% FS

Long term drift
< ±0,1 % FS according to IEC 61298-2

Mounting position
As required

Gas compatibility
He, O2, N2, Ar, N2O, CO2 and relative mixture

Operating Temperature
-20...80 °C

Reference standards and directives
RED 2014/53/E, EMC 2014/30/UE PED 2014/68/UE, RoHs 2011/65/UE EN 61000-6-1, EN 61000-6-3, ISO 11114-2, ISO 15001

360° View

360 Degree Drag

0%

Typical Applications

Remote monitoring unit for gas cylinder bundles

TECHNICAL FEATURES

CE certification
