SDAMGUARD-MED

HOSPITAL ALARM

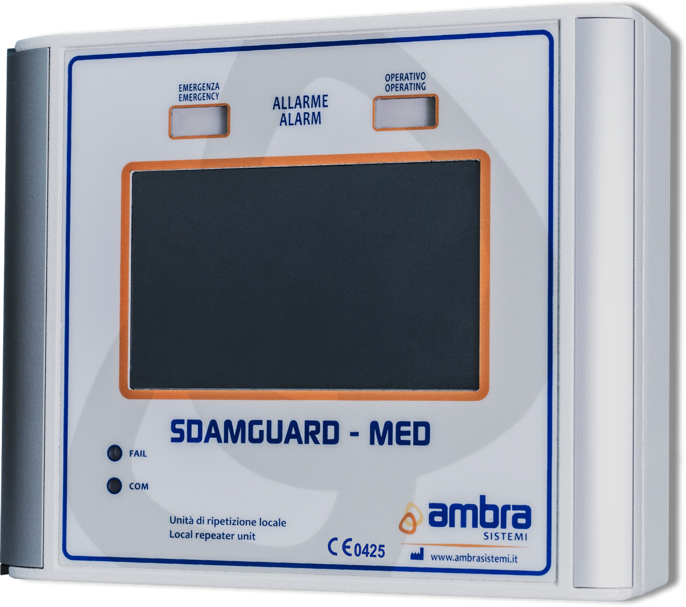

SDAMGUARD-MED

CONCENTRATORE ALLARMI DI PIANO
Download PDF Product overview
Download PDF Data sheet
Download PDF Conformity certificate


SDAMGUARD-MED is the local repeater for networks consituted by SDAM-MED and/or SDAL-MED units


Typical application:
Monitoring of medical gas supply systems through networks consituted by SDAM-MED and/or SDAL-MED units


Functions:

-Data collecting from up to 253 SDAM-MED and/or SDAL-MED units, through RS485 local network SDAMNET
-Monitoring and alarm classification in accordance with operating parameters assigned to corresponding SDAM units
-Origin of the information notified by the Identifier assigned to each SDAM-MED and/or SDAL-MED units
-Wide display 4 lines x 20 characters with led backlight
-Yellow and red alarm light for medium and high alarm status
-Alarm acoustic signal with stop pushbutton (Alarm ACK)
-Alarm recovery time adjustable from 1 to 15 minutes
-Programming by pushbuttons on front panel
-Automatic configuration by self-learning function
-Visual indications for communication in progress and fault conditions
-Auxiliary output switch for external cumulative alarm indicator or hooter
-Proprietary network protocol SDAMNET
-Optical and acoustic indication about alarm status in accordance with European standard ISO 7396-1 and EN 60601-1-8
